single motor standing desk | small square tube, aircraft table

Single motor inverted small square tube two sections (aircraft table with table top)27A-C412R-600

Motors：Single motor

Speed：16mm/S

Height Range：700-1150mm

Frame length：907mm

Leg size：60×60、55×55

End plate：465mm

Foot size：580mm

Panel size：15×490×1120mm（3 point board）

Ctn size：740×630×162mm

G.W.：24.8Kg

20GP/40HQ：378/864（with pallet）

Color：white/black

Configuration specifications: without socket (charged separately)

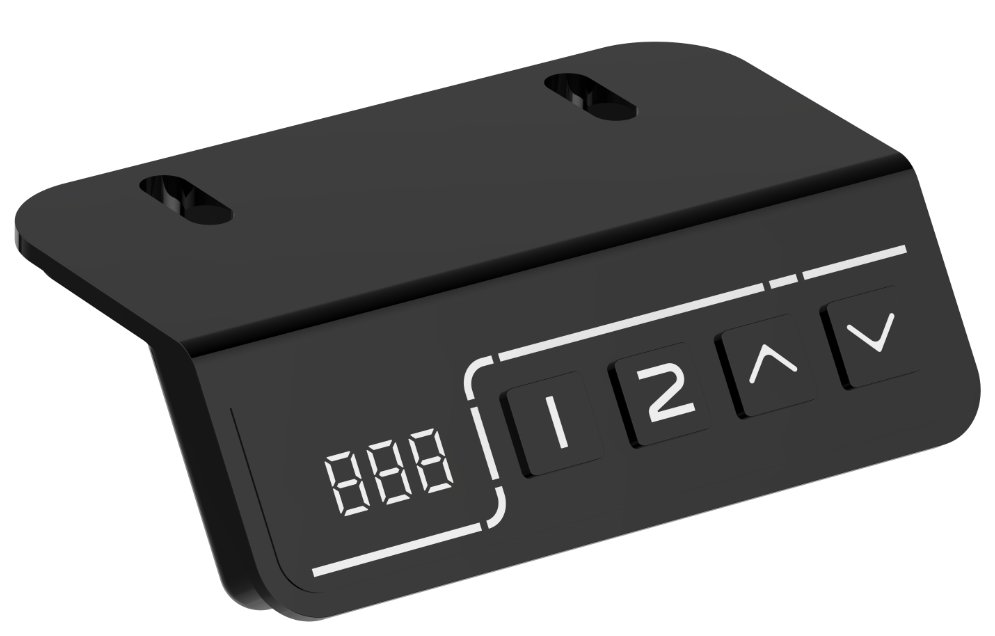

Handset：4 key with display, rebounds when encountering resistance

Max capacity：50 Kg

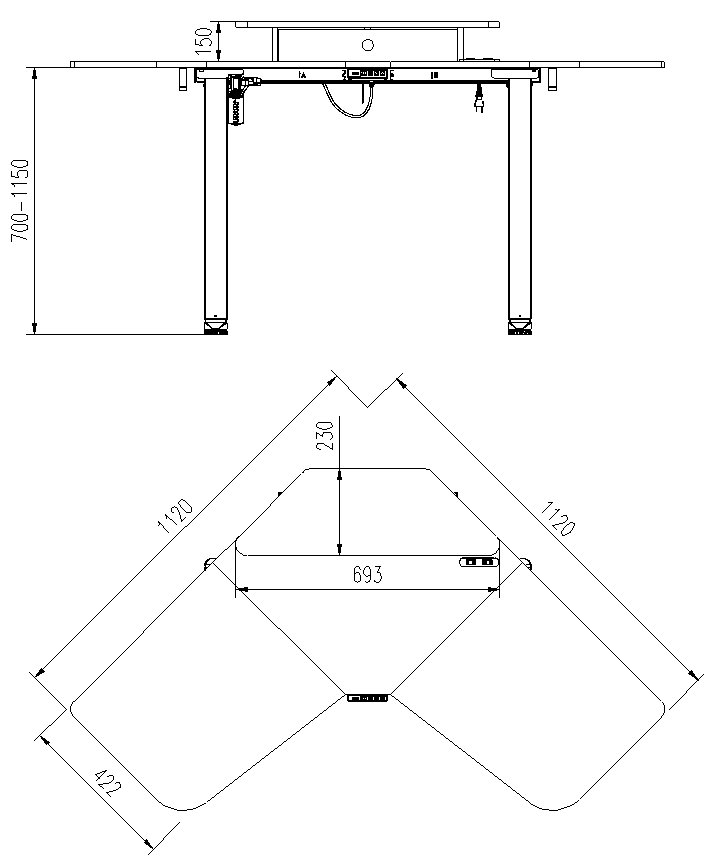

Effect diagram	Specification		Parameter（P600-2）
	Name	Factory Model	27B-C412R
	Name	Factory name	Single motor inverted small square tube two sections (aircraft table with table top)
	Main parameters	Speed	16 mm/s
		Height range	700-1120 mm
		Frame size	907mm
		Suitable for table size	15×422×1120×1120mm
		Maximum load	50KG
		Input voltage	100-240V
	Secondary parameters	Tube size	5555、6060
		Table frame color	White, black
		Sound	<50dB
		Hand control	4-button display, rebound when encountering resistance
		Number of sections	2 sections inverted
		Number of motors	1
		Whether to have a countertop	bring
		Countertop color	Black, white, wood grain (see color palette)
	Packing size	20GP/40HQ	378/864(without pallets)
		Carton size	740×630×162mm
		Number of boxes	1
		Gross Weight	24.8
